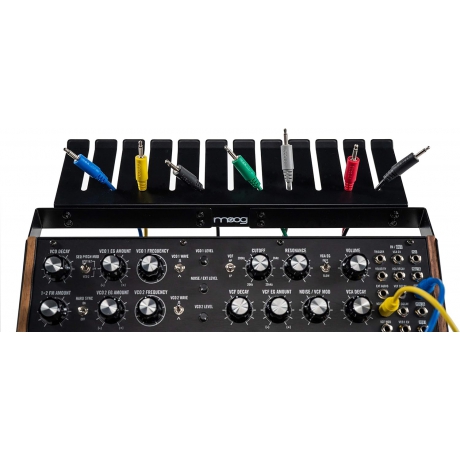

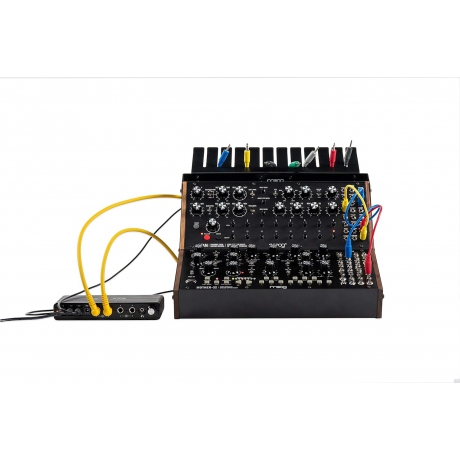

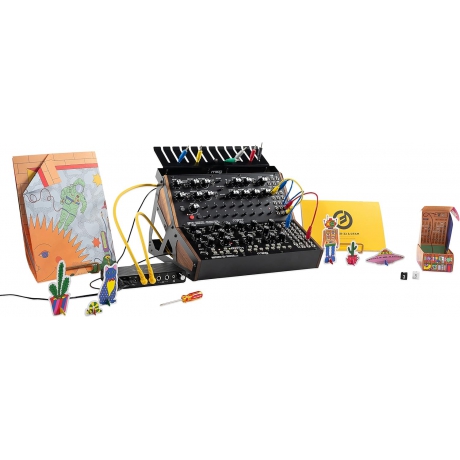

Moog Sound Studio: Mother-32, DFAM, and Subharmonicon Semi-Modular Synthesizer Bundle

Moog Sound Studio: Mother-32, DFAM, and Subharmonicon Semi-Modular Synthesizer Bundle

Ses Teknolojisi: 100% Analog
Tuşlar: Momentary Pads: 13
Polifoni: Monophonic
Patchbay: 32x 1/8" / 3.5 mm jacks
Ön Panel I/O: Audio Output: 1/4" / 6.35 mm
Güç: Güç Desteği: 100-250 VAC, 50/60 Hz, +12 VDC 1 A
Güç Tüketimi: 2.8 W
Eurorack Current Draw: +12 VDC, 230 mA (10-pin header)
Ölçüler: Desktop Case: 12.6 x 4.2 x 5.2" / 31.9 x 10.7 x 13.3 cm
Eurorack Mounting: 60 HP
Modül Deriniği: 0.7" / 17.5 mm
Ağırlık: 3.5 lb / 1.6 kg

Moog DFAM - Drummer From Another Mother - Semi-Modular Analog
Percussion Synthesizer Teknik Özellikleri

Ses Teknolojisi: 100% Analog
Sequencer: Analog Sequencer: 8 steps with pitch and velocity per-step
Sequencer Kontrolü: Tempo, Run/Stop, Trigger, Advance
Sound Source: 2 x oscillators with square and triangle waveforms
1 x white noise generator
1 x external audio input
FrekansControl: ±5 octaves (10-octave range)
Mixer: Level controls for oscillator 1, oscillator 2, and white noise/external audio input
Filter: 20 Hz to 20 kHz, switchable low-pass / high-pass, 4-pole transistor ladder filter
Envelopes: VCO EG: Voltage-controlled decay and bipolar amount control
VCF EG: Voltage-controlled decay and bipolar amount control
VCA EG: Voltage-controlled decay and selective fast/slow attack times
Patchbay: 24 x 1/8" / 3.5 mm jacks
Patchbay Inputs: Trigger, VCA CV, Velocity, VCA Decay, External Audio, VCF Decay, Noise Level, VCO Decay, VCF Mod, VCO 1 CV, 1→2 FM Amount, VCO 2 CV, Tempo, Run/Stop, Advance/Clock
Patchbay Outputs: VCA, VCA EG, VCF EG, VCO EG, VCO 1, VCO 2, Trigger, Velocity, Pitch
Audio Output: TS Line and TRS Headphone Output: 1/4" / 6.35 mm (shared output jack)
Güç: Güç Desteği: 100 to 240 VAC; 50/60 Hz, +12 VDC 1200 mA
Güç Tüketimi: 3.0 W
Eurorack Güç Draw: 230 mA (+12 V from 10-pin header)
Ölçüler: Enclosure: 12.6 x 4.2 x 5.2" / 319.3 x 106.9 x 133.1 mm (with knobs)
Eurorack Mounting Ölçüler: 60 HP
Module Depth: 1.0" / 25.4 mm
Weight: 3.5 lb / 1.6 kg

Moog Subharmonicon Semi-Modular Polyrhythmic Analog
Synthesizer Specs

Ses Teknolojisi: 100% Analog
Kaynak: VCO 1, SUB 1, SUB 2 / VCO 2, SUB 1, SUB 2
Filter: Self-Oscillating Ladder Filter, Low-Pass, 4-Pole (24 dB/Octave)
Envelopes: VCA EG (Attack, Decay); VCF EG (Attack, Decay)
Sequencer: 2 x Analog Sequencers
Steps: 4 Steps per Sequencer, Selectable Quantization
Clock: Driven by Any and All of the Rhythm Generators
Rhythm Function: 4 x Rhythm Generators
Rhythm: Derived by Dividing the Tempo by an Integer Value (1-16)
Clock: 20 to 3000 BPM (1 Pulse per Quarter-Note), MIDI Clock, Ext Clock
Patchbay: Jacks: 32 x 1/8" / 3.5 mm
Inputs: 17
Outputs: 15
MIDI: 1/8" / 3.5 mm MIDI Input (Type-A Dongle Included)
Rear Panel: Headphone: 1/4" / 6.35 mm TRS
Instrument Output: 1/4" / 6.35 mm TS
Güç Desteği: 12 VDC Input
Security: Kensington Lock Slot
Güç: Güç Desteği: 100 to 240 VAC; 50/60 Hz, +12 VDC, 1200 mA
Güç Tüketimi: 4.8 W
Eurorack: 360 mA (Maximum) from +12 VDC (10-Pin Header)
Ölçüler: Enclosure: 12.6 x 4.2 x 5.2" / 32 x 10.7 x 13.3 cm (with Knobs)
Module Depth: 1" / 2.5 cm
Horizontal Pitch: 60 HP
Weight: 6 lb / 2.7 kg
